Omnipod 5:
Pairing the FreeStyle Libre 2 Plus Sensor

How do I pair my FreeStyle Libre 2 Plus Sensor with my Omnipod 5 System?

Learn how to pair your FreeStyle Libre 2 Plus Sensor to your Omnipod 5 System.

Note: All Sensor management will be performed through the Omnipod 5 App on the Controller, including setting up and responding to alarms.

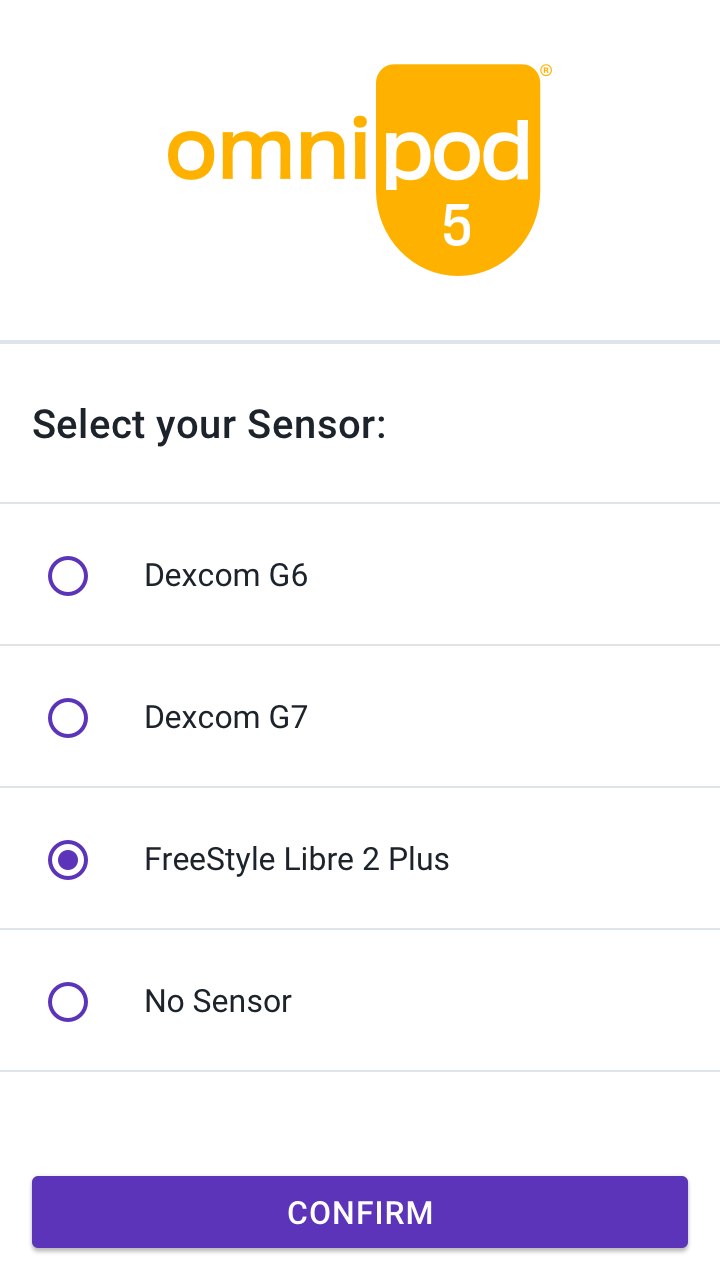

Step 1: Select FreeStyle Libre 2 Plus as your Sensor

Omnipod 5 Omnipod 5
  • From first time setup, select FreeStyle Libre 2 Plus ​

OR

Omnipod 5 with FreeStyle Libre 2 Plus "Manage Sensor" within menu Omnipod 5 with FreeStyle Libre 2 Plus "Manage Sensor" within menu
  • From Home screen, tap Menu button. Tap Manage Sensor​

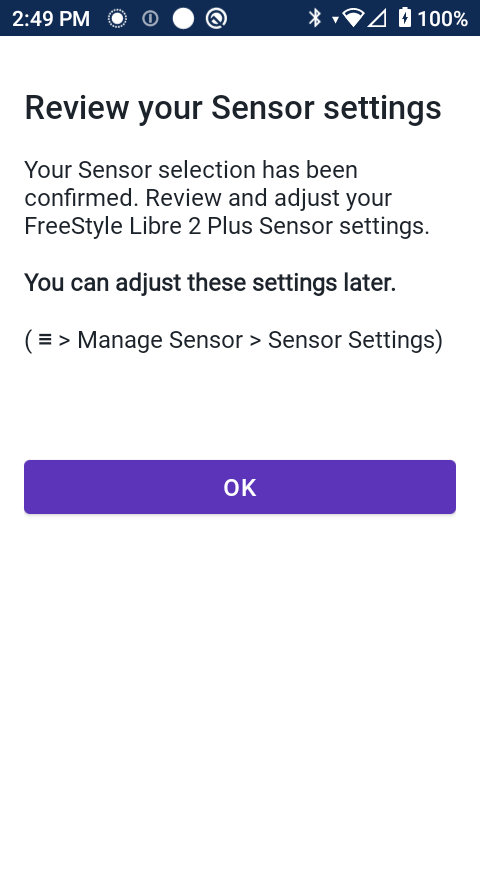

Step 2: Review your Sensor settings

Review you settings Review you settings
  • Review or adjust your Low Glucose, High Glucose, Missed Sensor Values settings, and volume preferences​

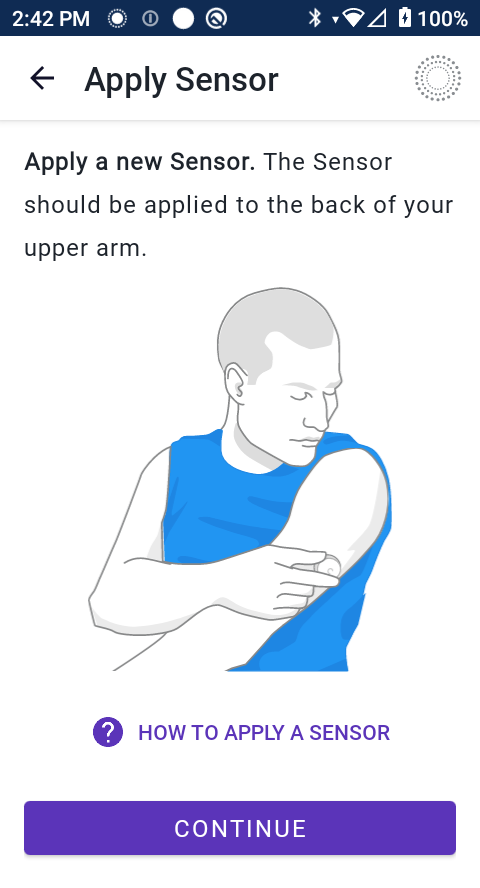

Step 3: Apply your FreeStyle Libre 2 Plus Sensor​

Omnipod 5 Omnipod 5
  • Apply your FreeStyle Libre 2 Plus Sensor by following the on-screen instructions​
  • Tap HOW TO APPLY A SENSOR if you need help. See below for Pod placements for optimal line of sight​

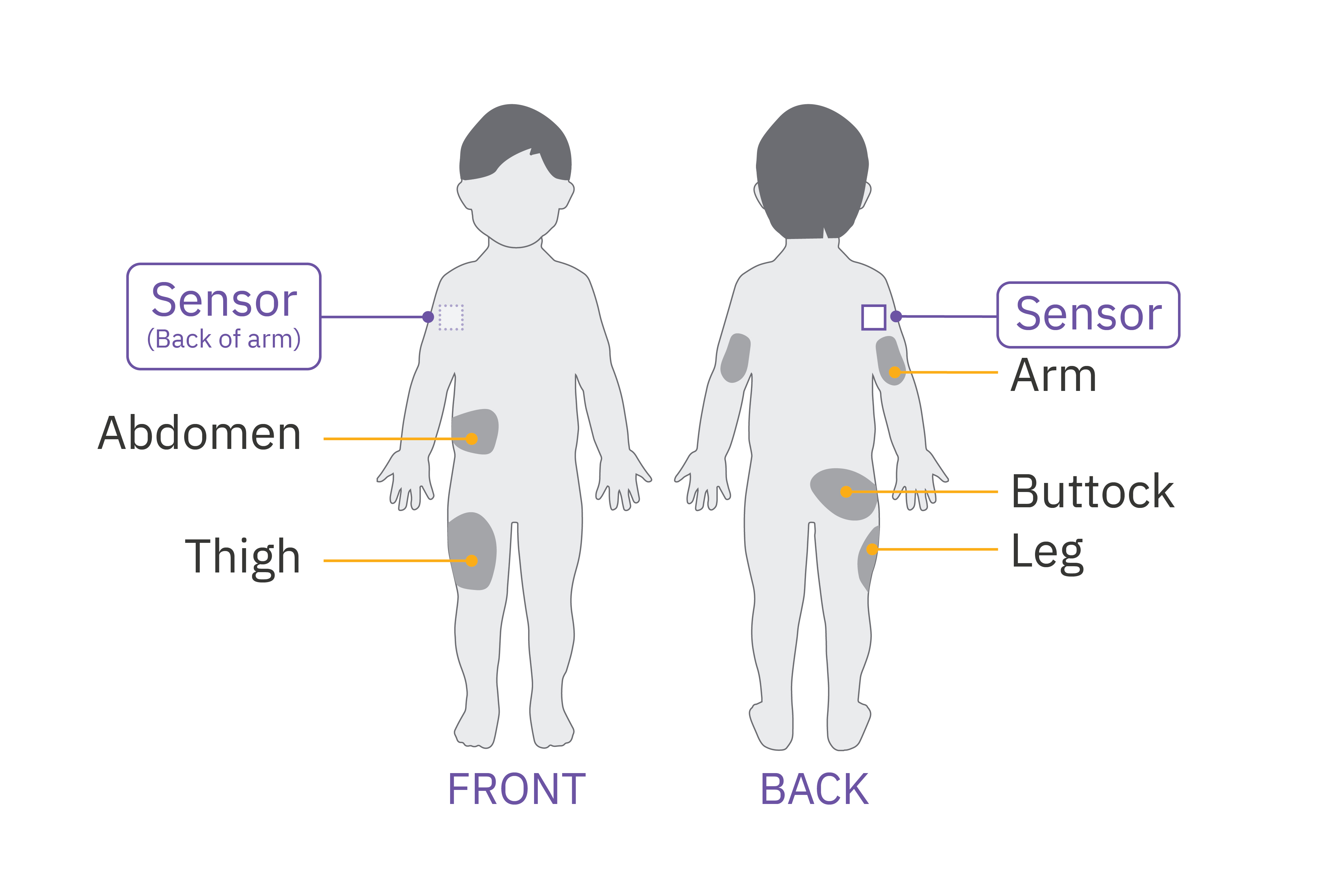

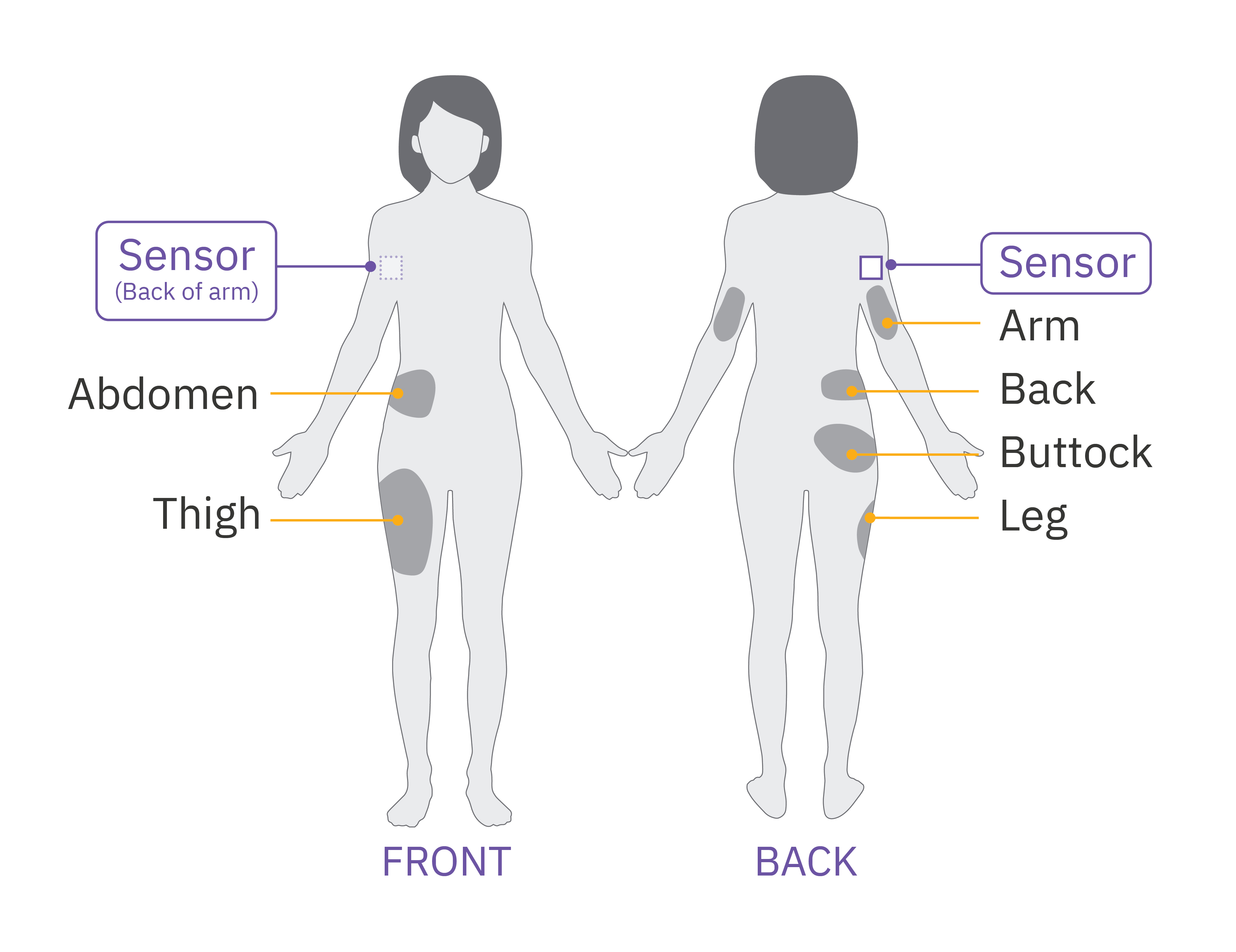

Pod & Sensor Placement Examples

Omnipod 5 Omnipod 5
Omnipod 5 Omnipod 5

Consider these Pod placements to find the locations that work best for your body for optimal line of sight to your Sensor*:

  • On the same arm as Sensor
  • Same side, abdomen
  • Same side, lower back (adult only)
  • Same side, thigh
  • Same side, upper buttocks
  • Opposite side, back of the arm
*Illustration for example only. Please refer to Sensor user guide for approved Sensor placement and separation distances.

Step 4: Scan your Sensor

Omnipod 5 Omnipod 5
  • Place the back of your Controller up to the Sensor and scan it. The lower third of the Controller should almost touch the Sensor
  • Switch back to Automated Mode. Your App will show Automated Mode: Limited until connection is complete, which can take up to 20 minutes

If you need additional support, call Omnipod Product Support at 1-800-591-3455.​
